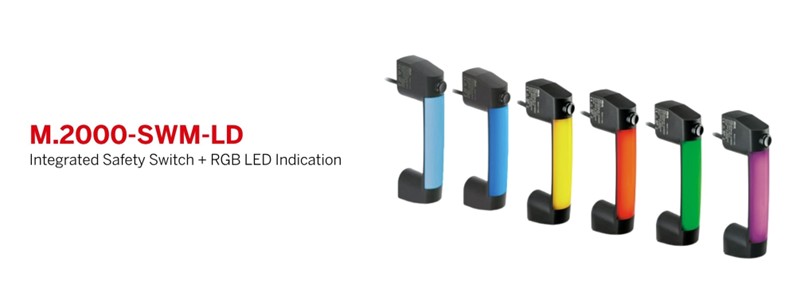

M.2000-SWM-LD Monostable Switch Handle with LED Indicator: A Smarter Way to Improve Machine Safety and Status Indication

Modern industrial machines are expected to be compact, efficient, and easy to operate. Every component plays an important role in achieving these goals, especially those that the operator interacts with every day. A control handle should not only provide a comfortable grip but also allow safe and reliable operation without adding unnecessary complexity to the machine.

The M.2000-SWM-LD Monostable Switch Handle with LED Indicator from Elesa+Ganter India has been developed with this objective in mind. It combines three essential functions, a sturdy industrial handle, a momentary electrical switch, and an LED status indicator, into one integrated component. By bringing these functions together, it helps simplify machine design, improve operator convenience, and reduce the number of separate components required on the machine.

What is the M.2000-SWM-LD?

The M.2000-SWM-LD is an industrial operating handle with a built-in monostable (momentary) switch and an integrated LED indicator. Unlike a standard switch that remains in its selected position, a monostable switch automatically returns to its original state as soon as the operator releases it. This makes it ideal for applications where a machine function should only remain active while the switch is being pressed.

The built-in LED provides clear visual feedback about the machine's operating condition. Instead of installing separate indicator lights on the control panel, the operator receives instant status information directly from the handle, making machine operation more intuitive and efficient.

Functional Design

The handle performs three integrated functions at every access point:

1. Mechanical door operation: standard industrial handle actuation.
2. Safety switching: triggers a positive-opening safety contact that signals the control system the instant the door opens, halting hazardous operations without delay.
3. Visual status communication: a multi-colour LED indicates machine state directly at the access point.

Green confirms normal operation. Red signals immediate hazard. Yellow indicates a transition or shutdown state. Blue confirms an access request has been registered. This is a direct communication interface engineered into the point of access not an auxiliary feature

Why It Matters in Production Environments

On active production lines welding cells, packaging systems, CNC enclosures, robotic work cells operators require immediate, unambiguous status confirmation before approaching equipment. A handle that communicates machine state visually reduces hesitation, eliminates unnecessary interlock checks, and accelerates routine access for maintenance and material handling.

For machine builders and panel designers, the commercial advantage is equally direct: one component to specify, one cutout to machine, one wiring interface to manage replacing a handle, switch, and indicator sourced from three separate suppliers.

Engineered for Demanding Environments

The M.2000-SWM-LD carries IP67 and IP69K protection, rated for dust ingress, water jets, and high-pressure washdown cycles performance requirements standard in food processing, metalworking, and outdoor or semi-enclosed installations. The housing is glass-fibre reinforced, self-extinguishing polyamide, delivering long-term resistance to mechanical wear and thermal stress under continuous daily operation.

Endurance ratings confirm long-term operational stability: 10 million mechanical cycles and 20 million manoeuvres (B10D) performance specifications built for high-frequency access points operating under continuous production demand.

Safety Performance, Not a Compliance Checkbox

The switch mechanism operates on positive opening contacts, per IEC EN 60947-5-1, a design where mechanical force directly forces the contact open, independent of spring action. This ensures the safety circuit breaks correctly even under component fault conditions. For engineering teams accountable for machine safety certification, this specification is foundational to system design, not a secondary consideration.

Configuration Flexibility for System Integration

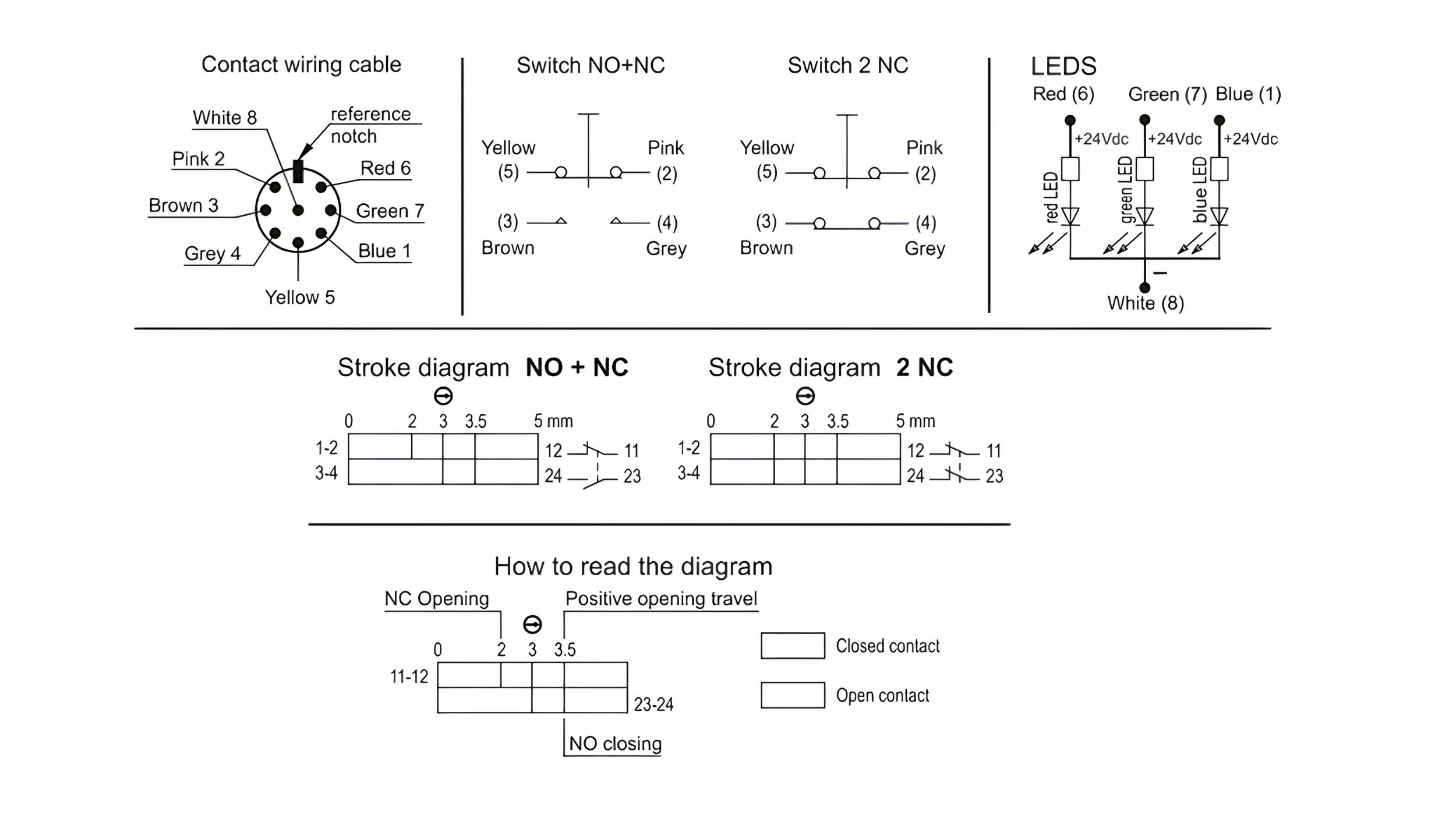

Available with a plug-in connector or direct cable (2.5m or 5m), and configurable with:

• 1 NC + 1 NO contact, or
• 2 NC contacts

This allows direct integration into existing safety circuit architectures without requiring redesign of control panel wiring logic.

Measurable System-Level Advantages

• Reduced component count: single part number replaces three separate procurement lines.
• Simplified panel design: fewer cutouts, fewer wiring runs, tighter coordination between mechanical and electrical engineering.
• Fewer failure points: component consolidation reduces points of mechanical and electrical failure.
• Faster diagnostics: LED status confirms machine state before panel access, reducing downtime investigation.
• Export-ready compliance: CE marked, RoHS compliant, built to EN 60947-5-1 and Low Voltage/EMC directives, meeting international certification requirements for global equipment deployment.

Product Variations

Special executions on request: 2 NO contact configuration, 12V LED option, quick-release contacts, and a reduced key-force (15N) non-IP variant (suffix "-N15").

Complementary standard product: M.2000 — same handle architecture without integrated switching, for applications requiring mechanical operation only.

Product Accessories

The following accessory is available for easier installation:

• FC-M12x1 Extension Cable – M12x1 female connector extension for convenient electrical connectivity and installation flexibility.

The M.2000-SWM-LD consolidates safety switching, mechanical actuation, and status communication into one engineered access point, delivering measurable reductions in component count, wiring complexity, and diagnostic time, while meeting the durability and compliance standards demanded by continuous production environments.
