Main specifications
Material

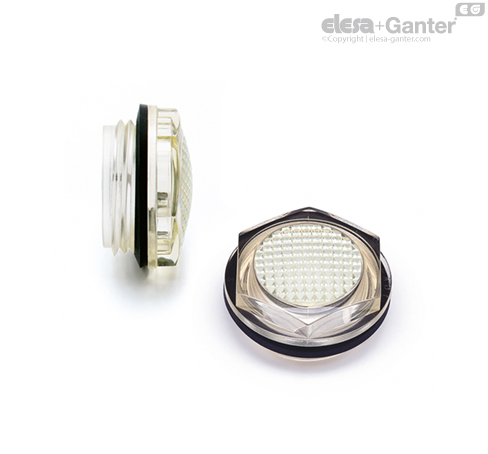

Transparent polyamide based (PA-T) technopolymer. Avoid contact with alcohol or detergents containing alcohol.The window consists of a continuous series of prisms which provide a clear and immediate reading of the level of the oil contained in the reservoir.
Packing ring
NBR synthetic rubber.
Maximum continuous working temperature
100°C.
General information
Technical data
The tightening torque indicated in the table guarantees an optimal tightness, keeping the packing ring in the correct position.
Note
For use with other fluids with special additives, please contact ELESA Sales Department.
Accessories
Accessories on request
Brass nut type GH. for fitting to reservoirs with wall thickness smaller than 5 mm.
