GN 742
78711-R,20
78710-R,10
78712-R,50
orGN 300-30-B5-SW;60
GN 612-5-M12x1,5-A;40
DIN 172-B10,5-20-A;50
ISO 8675-M8x1-04-BT;10
78711-R,20
78710-R,10
78712-R,50
orGN 300-30-B5-SW;60
GN 612-5-M12x1,5-A;40
DIN 172-B10,5-20-A;50
ISO 8675-M8x1-04-BT;10
Aluminium
temperature resistant up to 180 °C
Sealing ring rubber FPM (Viton®)
Identification by not black finish of seal

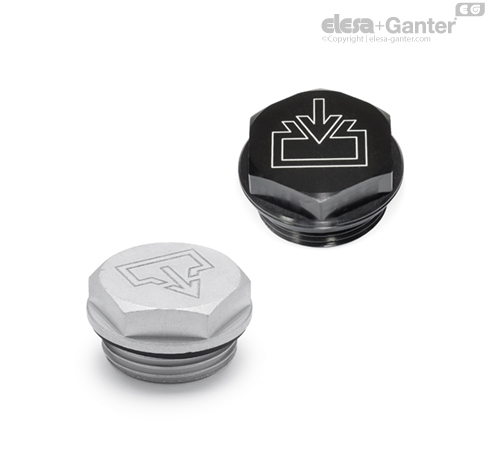

Threaded plugs GN 742 are fitted with outside diameter d1 to suit screw holes with BSP threads to DIN 3852.
The sealing ring is bedded into a undercut groove which prevents it from dropping out and at the same time stops it from being extruded when tightening the cap.
