Specification
Types
- Type D: consisting of three parts
- Type Z: consisting of two parts
Steel
Zinc plated, blue passivated
Pin
Brass, nickel-plated
Washer
Brass, nickel-plated
Hexagon nut ISO 4032
Steel zinc plated, blue passivated
Serrated washer DIN 6797
for securing screws
Steel zinc plated, blue passivated
Information

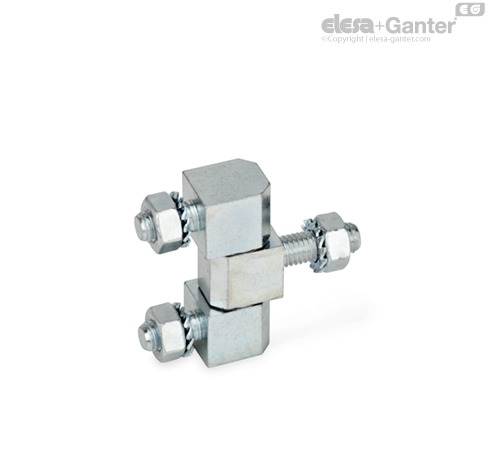

Hinges GN 129 are used for doors which are flush with the frame on the outside. These hinges are normally arranged to the side of the door.
In the two-part design, the door can be unhinged with two identically arranged hinges.
The three-part hinges, which generally cannot be unhinged and are mounted inside, are suitable for doors and flaps which, as anti-tamper precaution, must not be dismountable from the outside.
