GN 817.1
78711-R,20
78710-R,10
78712-R,50
orGN 300-30-B5-SW;60
GN 612-5-M12x1,5-A;40
DIN 172-B10,5-20-A;50
ISO 8675-M8x1-04-BT;10
78711-R,20
78710-R,10
78712-R,50
orGN 300-30-B5-SW;60
GN 612-5-M12x1,5-A;40
DIN 172-B10,5-20-A;50
ISO 8675-M8x1-04-BT;10
Guide
Zinc die casting
plastic coated
black, matt textured finish
Pin
Stainless Steel AISI 303
Knob
Plastic (Polyamide PA)

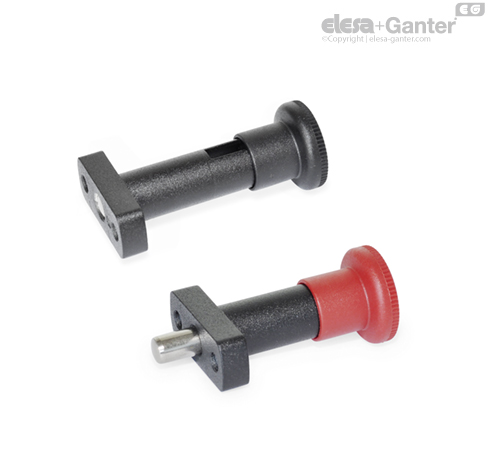

Indexing plungers GN 817.1 (Type C) are used for such applications wehere the plunger has to stay in its retracted position. To achieve this, the knob is rotated 90° degrees after being retracted. A notch keeps the plunger in this position.
