GN 614.7
78711-R,20
78710-R,10
78712-R,50
orGN 300-30-B5-SW;60
GN 612-5-M12x1,5-A;40
DIN 172-B10,5-20-A;50
ISO 8675-M8x1-04-BT;10
78711-R,20
78710-R,10
78712-R,50
orGN 300-30-B5-SW;60
GN 612-5-M12x1,5-A;40
DIN 172-B10,5-20-A;50
ISO 8675-M8x1-04-BT;10
Housing
Stainless steel AISI 305
Ball
Stainless steel AISI 420C NI
Hardened
Pressure spring
Stainless steel AISI 631

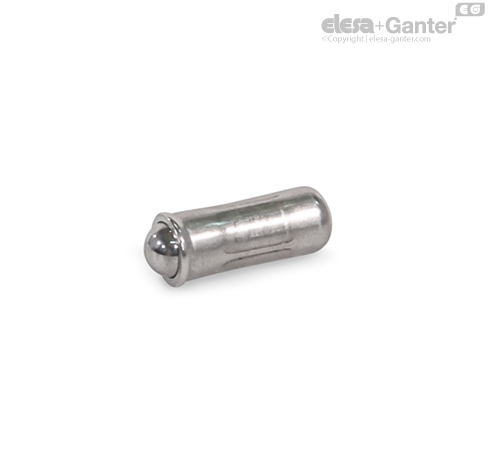

Press-fit stainless steel spring plungers GN 614.7 are used as detents as well as for push-on and push-off applications and ejectors.
The tolerance d1 H7 is recommended for the locating bore.
