Specification
Types
- Type A: without retaining bores
- Type B: with retaining bores for rotary tables
Aluminium
Anodized, natural color
Socket cap screws DIN 912
Stainless steel
Information

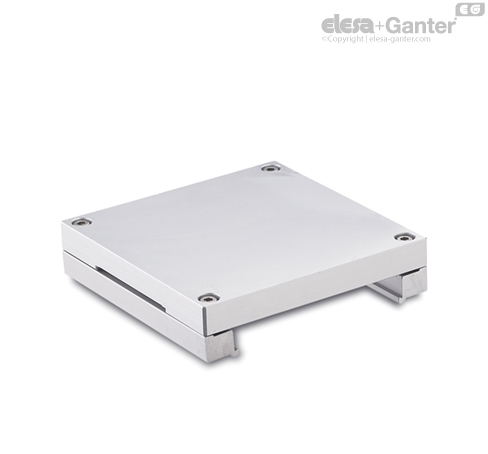

Mounting plates GN 900.4 type A are used for installing fixtures on the operator’s side. Type B is used for installing a rotary table GN 900.6 .
The mounting plate can be simply clamped on to the slide and no additional drilled holes are required.
The small fixing plates serves as an additional fine adjustment of the mounting plate with the adjustable slide unit.
All parts required to make up a set are included.
