Information

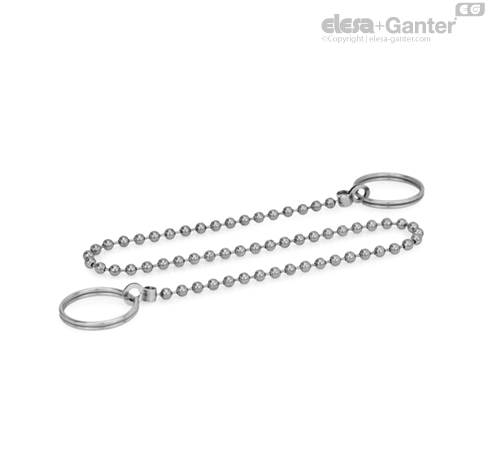

Ball chains GN 111.5 are mainly used in connection with ball lock pins and locking pins with axial lock.
The ball chains lack any amount of stiffness due to their design
The key rings are supplied unmounted. Both rings have the same Ø d1.
The details on static loads are guide values given without warranty.
Ideal suitable for ball lock pins and locking pins with axial lock:
| Ideal suitable for ball lock pins and locking pins with axial lock with pins Ø: |
| d1 | GN 113.1, GN 113.3, GN 113.4, GN 113.7, GN 113.8, GN 113.9, GN 113.10 | GN 113.5, GN 113.6 | GN 113.11, GN 113.12 | GN 114.2, GN 114.3, GN 114.6 | GN 114.7, GN 114.8 | GN 114.11, GN 114.12 | GN 124.1, GN 124.2 | GN 124.3 | GN 214.2, GN 214.3, GN 214.6 | GN 314 |
| 14 | 5 / 6 / 8 | all | 5 / 6 / 8 / 10 | all | 6 / 8 | 6 / 8 / 10 / 12 | all | 2024-10-08 | 6 / 8 | - |
| 18 | 10 / 12 / 16 / 20 / 25 | - | 12 / 16 | - | 10 / 12 / 16 / 20 | 16 / 20 | - | 10 / 12 | 10 / 12 / 16 / 20 / 25 | 8 / 10 / 12 |
| 24 | - | - | 20 / 25 | - | - | - | - | - | - | 16 / 20 |
| 30 | - | - | - | - | - | - | - | - | - | - |
