Specification
Types
Identification no.
- No. 1 with bore for countersunk screws DIN 7991
- No. 2 with bore without countersunk
Sheet metal
zinc plated, blue passivated ZB
plastic coated
black, RAL 9005, textured finish SW
silver, RAL 9006, textured finish SR
Information

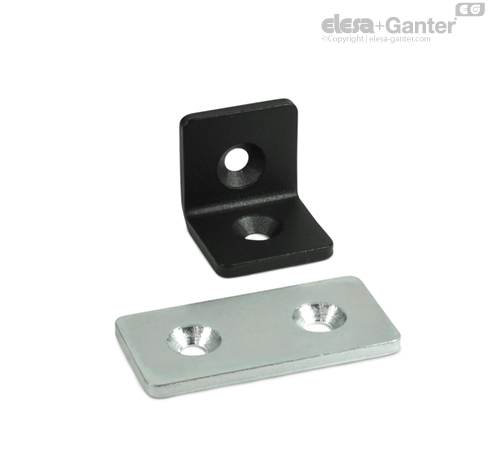

Angle pieces and shackles GN 967 are preferably used in connection with profile section systems. Square connections or connections with same contact area can so be realised in the smallest of spaces and with a high degree of stability.
Over and above the profile system configurations, the angle pieces and shackles can also be used for a wide variety of different fixing and retaining tasks, for instance in the design of jigs and fixtures.
In the version with identification no. 2 the drill holes are designed without countersunk hole to allow fixing with cylinder head screws, nuts or rivets.
