Specification
Material of the magnet
AlNiCo AN
Aluminium, nickel, cobalt
(temperature resistant up to 450 °C)
Lacquering red
temperature resistant up to 180 °C
Information

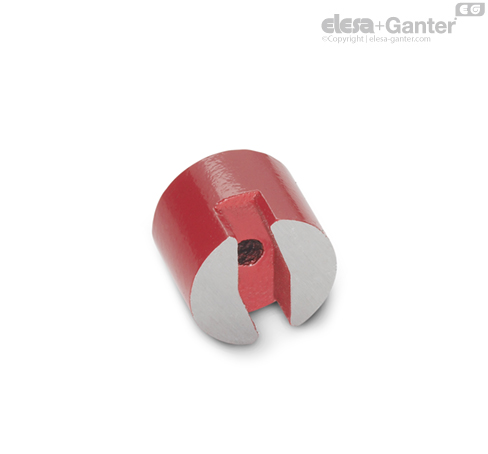

Button-type magnets GN 60 are unshielded magnets with a split magnetic surface that are manufactured by casting. Their usage temperature is largely limited by the red lacquering. For higher temperatures, blank button-type magnets are available on request.
To avoid negatively impacting the magnetic properties, the fastening screws should be made of a non-magnetic material such as stainless steel, brass or plastic.
For easier handling and to avoid demagnetization, a galvanized iron plate protects the magnetic surface of the magnet during storage and transport.
