Specification
Types
- Type A: Shaft-Ød2 < Bore-Ø d3
- Type B: Shaft-Ød2 = Bore-Ø d3
Aluminium
anodized, black
Stainless Steel-Socket set screw DIN 916
with internal hexagon and serrated point
Hub cover cap
Plastic, light grey
Information

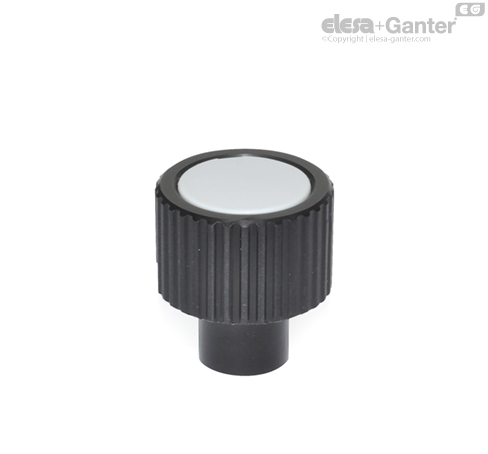

Control knobs GN 957 are used in connection with position indicators. These control knobs offer a simple solution when the assembly requires manual fine adjustment for the application for which it has been designed.
The design of this knob adapts it to the diameter of the adjustment shaft, so that no adapter bushes RB51 are needed.
