Specification
plastic coated
black, RAL 9005, textured finish SW
anodized, natural colour EL
Ends
plastic
Technopolymer (Polyamide PA)
black-grey
Lettering block
Insert groove supplied with:
paper strip 200 g/m2, width 19.5 mm
bright white, age-resistant
PVC hard film
transparent
Information
Typical applications for ledge handles with lettering block GN 430.1 include swivel or sliding doors on protective doors and equipment. They are also suitable for use as drawer handles.

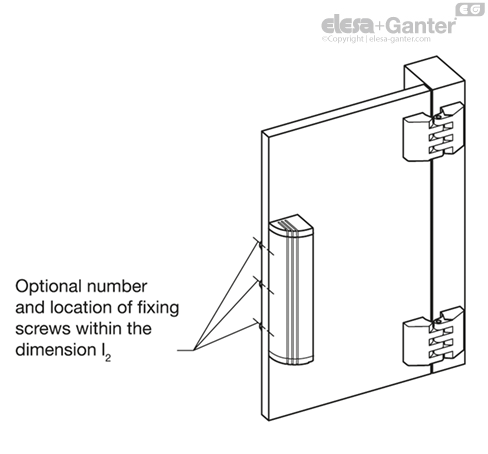

The screw channel for screw sizes M6 (extruded aluminium) allows an optional number of fixing screws in any position within the dimension l2.
Special lengths can be manufactured from relatively small quantities upwards.
In the design with lettering block, the end cap when delivered is mounted on one side such that the paper / film strip supplied can be lettered and pushed into the groove provided.
The paper strip can also be used as substrate for common lettering tape in widths below 18 mm.
