Main specifications
Material
Polyamide based (PA) technopolymer.

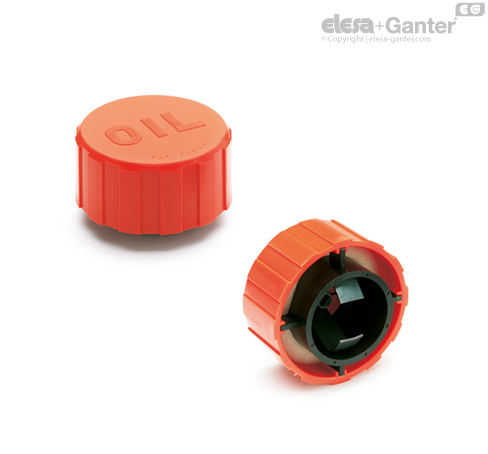

- Cover: RAL 2004 orange, semi-matte finish, marked "OIL".
- Threaded connector: black colour, semi-matte finish.
Mounting
Push-fit on pipes with max outside diameter of 39 mm and min inside diameter of 32 mm.
Clip
Black-oxide steel.
Ring-shaped air filter
"Tech-foam" polyurethane foam mesh (polyester base), air filtration 40 µ.
Maximum continuous working temperature
100°C.
