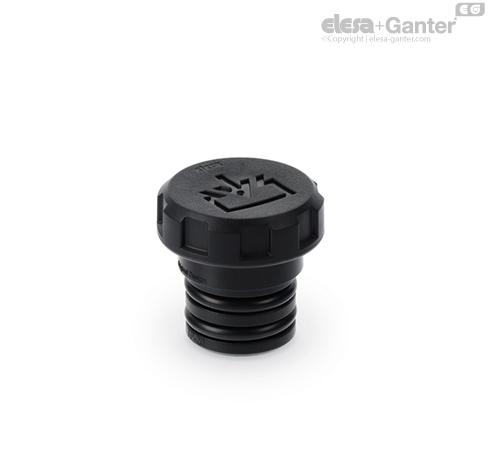

TP-CF Push-fit plugs With side breather hole

Material

Polyamide based (PA) technopolymer, black colour RAL 9005 (C9) or orange colour RAL 2004 (C2), matte finish.

Packing rings

Two NBR synthetic rubber O-rings.

Standard executions

• TP-C: without side hole.

• TP-CF: with side breather hole.

Maximum continuous working temperature

100°C.

Graphic symbol "fill"

According to DIN regulations.

Mounting

Push-fit avoids the need to screw/unscrew.
