Main specifications
Material
Glass-fibre reinforced polyamide based (PA) SUPER-technopolymer, RAL 9005 (C9) black colour or RAL 7040 (C33) grey colour.
Features and applications

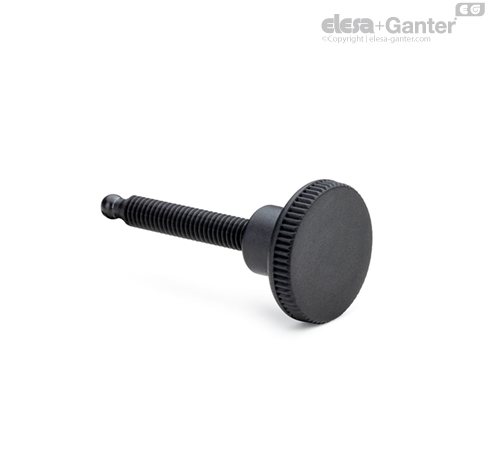

The DT.464-SB knobs have the same dimensions as the DIN 464 steel knobs.
In conjunction with GN 631 thrust pads can be used to make different locking systems.
- Resistance to chemical agents.
- Can also be used in outdoor conditions with excellent durability.
- High mechanical resistance.
- Lightweight: five times lighter than the steel equivalent.
The knob has been tested up to 100000 tightening cycles and the values of the torque were unchanged.
