Main specifications
Material

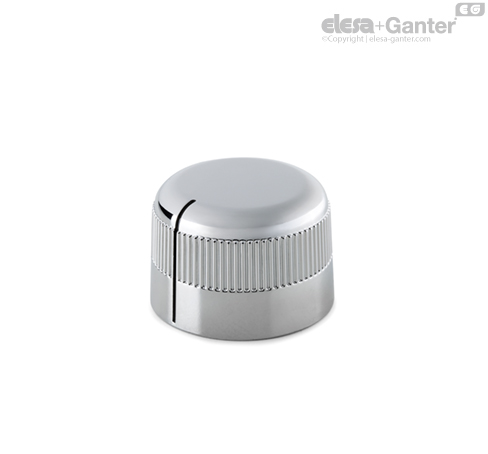

Phenolic based (PF) Duroplast chrome-plated, glossy finish.
Black pad-printed pointer index line, placed at 180° from the transverse pressure screw.
Standard execution
Plain blind hole, fixing by means of a transverse pressure screw according to UNI 5929-85 in AISI 304 stainless steel (headless screw with hexagonal socket and cupped end) which screws into the AISI 304 stainless steel nut.
Supplied.
Features
A limited manoeuvre angle is possible by fitting stop pins in the rear guide slot.
