Main specifications
Material
Body with pass-through holes for flat countersunk head screws and handle; glass-fibre reinforced polyamide based (PA) technopolymer, black RAL 9005 (C9) or grey RAL 7040 (C33) colour, matte finish.
Key in polyamide-based (PA) technopolymer, grey-black colour.
Rotating pin and return springs
Stainless steel pin and springs
Handle locking mechanism
Glass-fibre reinforced polyamide based (PA) technopolymer, black or grey colour.
Stainless steel spring and screws.

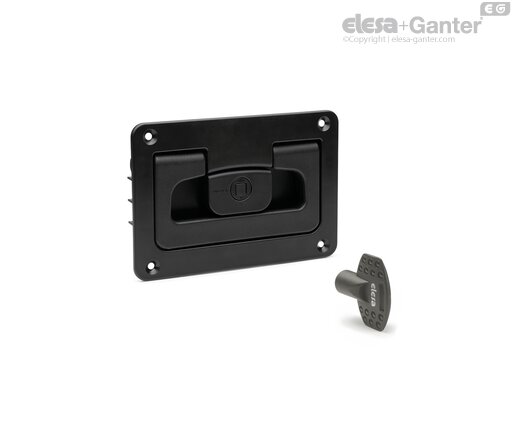

Electric panel type lock (QE), square keyway (Q).
General information
Features and applications
The product is designed to prevent the handle from opening accidentally in situations where it might pose an obstruction, such as with floor mounting.
The square keyway features a flush-fitting protective cap that prevents the accumulation of dirt or liquids.
Technical data
The resistance values for lifting (F1), tension (F2), and compression (F3) listed in the table were measured during permanent deformation using a dedicated dynamometric device, under the illustrated test conditions and at room temperature.
Instructions for use
Instructions for use

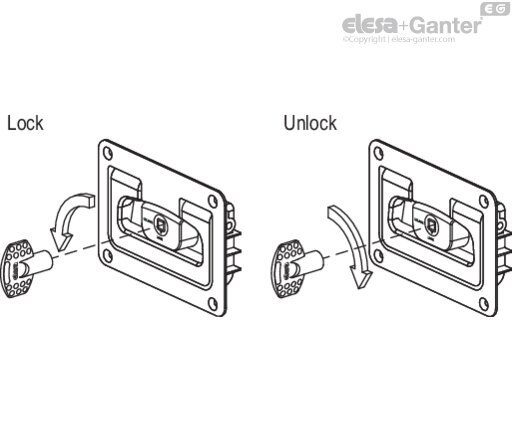

Locking: with the handle in the closed position, insert the key into the designated slot, applying slight pressure, and turn it 90° counter-clockwise.
Unlocking: insert the key into the designated slot, applying slight pressure, and turn it 90° clockwise.
Assembly instructions

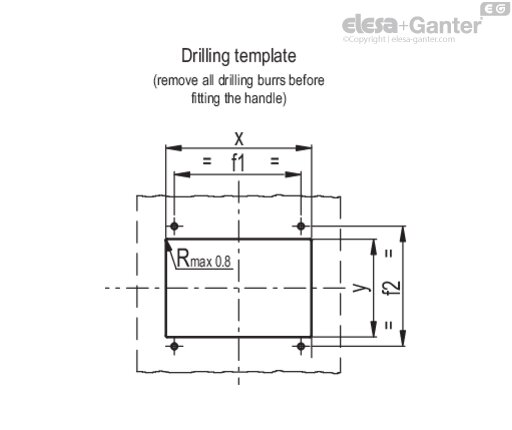

Drill the sheet according to the template dimensions.
| x | y | f1 | f2 |
| 135+0.2 | 65+0.2 | 118±0.1 | 79±0.1 |
