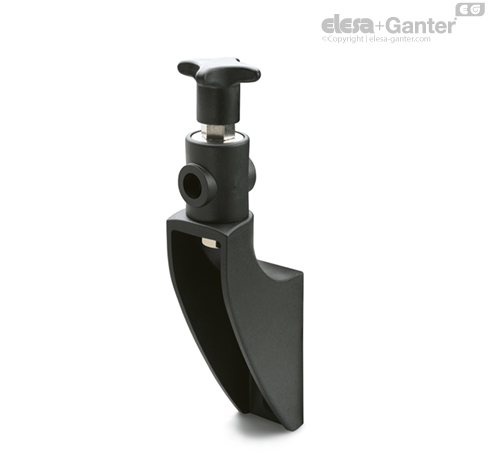

SPR.V

Guide rail brackets

Features

Particularly suitable when the angular and linear positioning needs to be executed in two different moments, for example when the distance between the guides has to be set more frequently than the angulation.

Maximum tightening torque for screw assembly 39 Nm.

Accessories on request

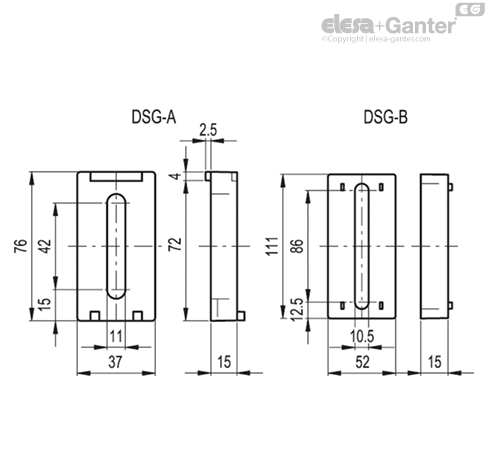

Spacer for guide rail bracket DSG-A (code 419676) or DSG-B (code 419677) in glass-fibre reinforced technopolymer, black colour, matte finish.



Special executions on request

AISI 304 stainless steel guide rail cylinder.

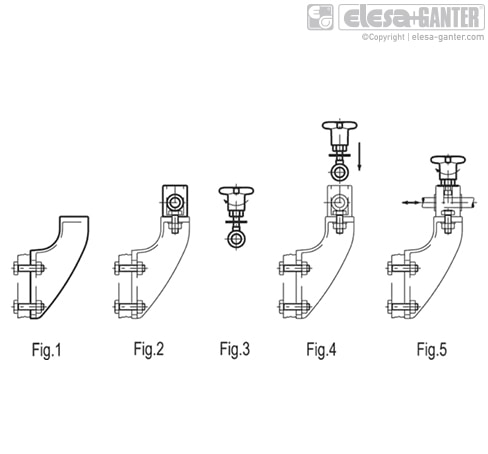

Assembly instructions

• Fit the guide rail bracket (Fig. 1).
• Assemble the guide rail cylinder to the support, with screw, nut and washer (Fig. 2).
• Insert the washer on the eye screw and assemble the knob (Fig. 3).
• Insert the eye in the guide rail cylinder housing (Fig. 4).
• Insert the guide pin in the guide rail cylinder hole. Set its linear and angular position and then clamp the knob (linear positioning) and the fixing nut of guide rail cylinder (angular positioning) (Fig. 5).
