Main specifications

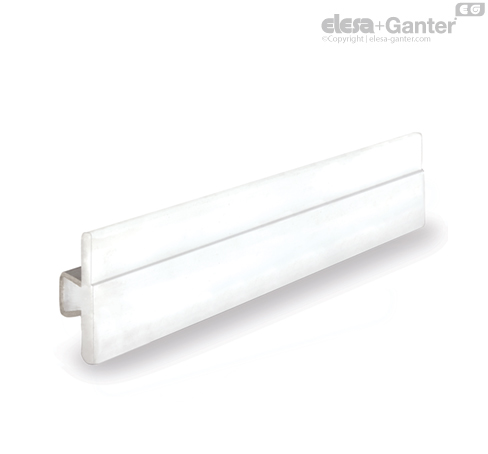

Guide profile
Polyethylene based (HMWPE) technopolymer, natural colour.
Bracket
AISI 304 stainless steel.
General information
Features and applications

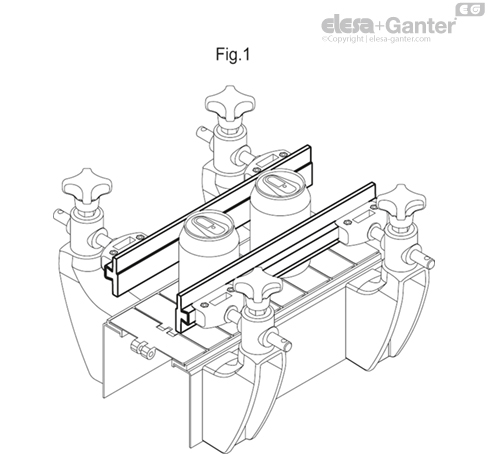

GLS side guide with shaped profile is used for the side guide of products with different dimensions on conveyor belts (Fig.1), without leaving traces on the containers.
High molecular weight polyethylene (HMWPE) has a high wear resistance; it is particularly suitable for high-speed movements due to its low coefficient of friction.

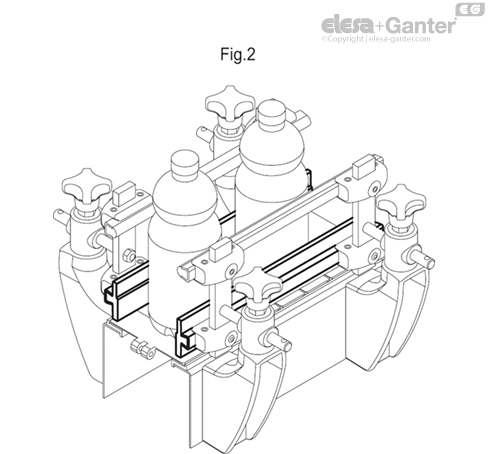

They are generally used with GLT or GLP-12 side guides (Fig.2) in case of products with important vertical dimensions.
Supplied in bars of 1500 or 3000 mm length.
Accessories
Accessories on request
Guide rail clamps MPG-T-S, MPG-2T, MPG-T.
