Specification
Identification no.
- No. 2: With socket cap screw ISO 4762
Connector clamp
Aluminum
- Black, RAL 9005, textured finish SW
- Plain finish, matte shot-blasted BL
Socket cap screws DIN 912
Stainless steel
Hex nuts DIN 985
Stainless steel
Self-locking via polyamide ring
Information

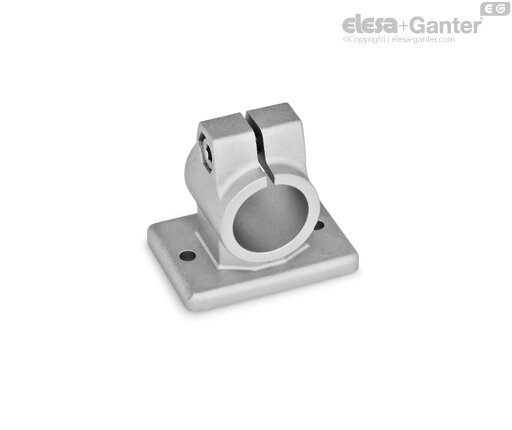

The clamping bore of flanged connector clamps GN 146.3 is mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.
Flanged connector clamps GN 146.3 can also be mounted to profile systems.
At the screw location z, the socket cap screw reduces the bore cross-section for clamping.
For clamping without tools, the socket cap screw can be replaced by an adjustable hand lever GN 911 listed in the table as accessory.
