Main specifications
Material
Polypropylene-based (PP) technopolymer, high UV resistance, RAL 9005 black colour.
Standard execution
Two fastening holes for cylindrical-head or hexagon-head screws.
Working temperature
From -30 °C to +90 °C.
General information
Features and applications

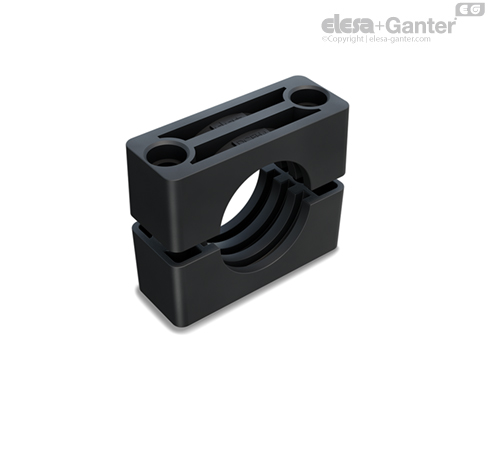

The heavy-duty series tube clamp, in accordance with DIN 3015-2, allows rigid pipes tubes to be secured and a tube system (for liquids or gases) to be created.
In particular, the DIN regulation defines specific reference groups based on the overall dimensions of the collar bodies.
The table shows the correspondence between the DIN 3015-2 group and the corresponding DCE-H group.
They are used in heavy industrial hydraulics for the construction of hydraulic and oil-hydraulic systems where high mechanical strength and effective vibration and noise reduction are required.
They are used in the rail and navel sectors, on offshore and onshore platforms.
See Tube clamps technical data.
| Correspondence between the DIN 3015-2 group and the DCE-H group |
|---|
| DIN 3015-2 group | 1 | 2 | 3 | 4 | 5 |
| DCE-H group | 1 | 2 | 3 | 4 | 5 |
Accessories on request
Accessories
For the assembly kit DCK-H.
