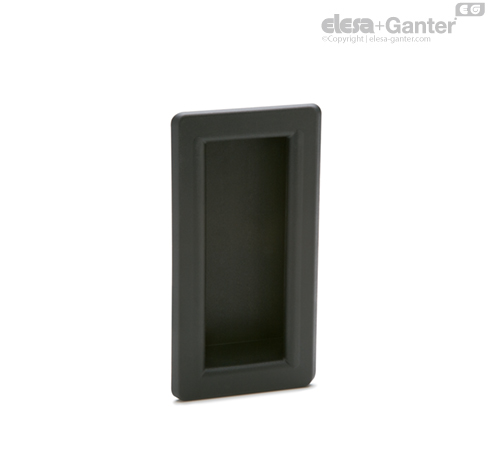

ERB-PF

Bi-directional flush pull handle

Features and applications

ERB-PF bi-directional flush pull handles are suitable to open and close sliding doors. The ergonomy of the cavity offers a safe and comfortable grip.

Technical data

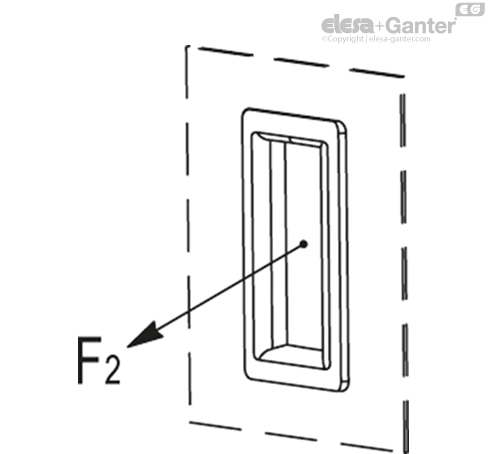

The pull out resistance values (F2) reported in the table are the result of laboratory tests carried out with the handle assembled on a panel with a thickness of 1.5 mm, stiffened for testing purposes.



Assembly instructions

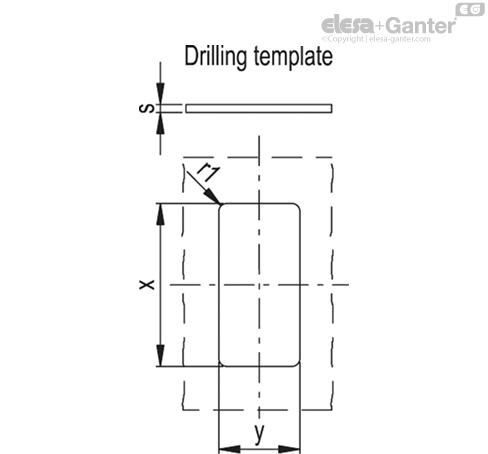

• Drill the handle housing according to the template dimensions.

• Remove all drilling burrs before fitting the handle.

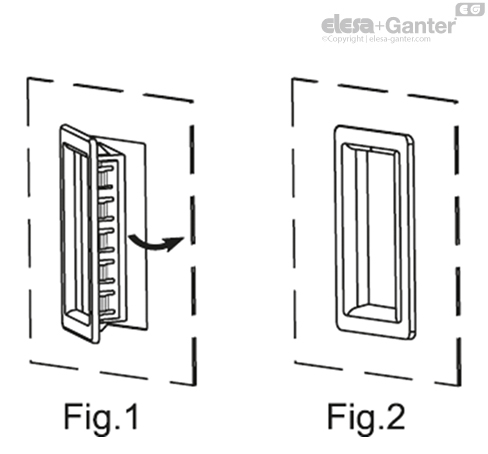

• Fit the side of the handle with fixed toothing into the housing (Fig. 1).

• Press onto the opposite side (elastic toothing) until the handle is completely snapped in (Fig. 2).
