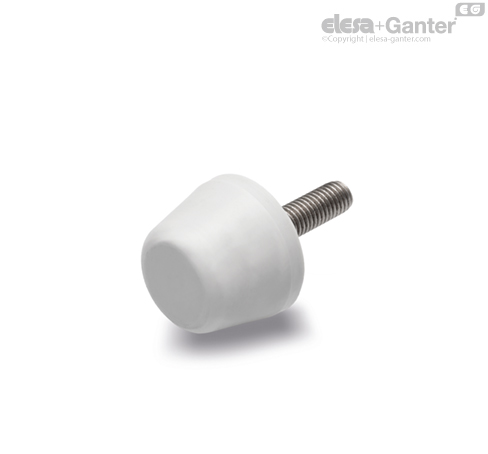

Main specifications
Standard execution
Threaded stud and base plate in AISI 304 stainless steel.
Vibration-damper body
Silicone rubber (MVQ) RAL 7040 (C33) grey or RAL 5002 (C52) blue colour, in compliance with FDA (U.S. Food and Drug Administration), giving the possibility to use in the food and medical industry.
- High resistance to ageing.
- Resistance to high temperatures (up to 200°C) and low temperatures (-50°C).
General information
Features and applications
The rubber buffers have been designed to damp vibrations, shocks and noises produced by moving bodies or non-balanced vibrating masses of equipment and machines.
DVF.6 elements are generally used as a bumper or as a limit stop for the absorption of vibrations, and for preventing:
- malfunctioning and reduction of the machine lifespan and/or of the adjacent ones;
- noise and thus also damage to health.
Load diagrams for each single code are available on request.
See Technical data and guidelines for the choice.
Other executions
Special executions on request
Silicone rubber (MVQ) in compliance with FDA, hardness 40, 70 Shore A ±5.
