Specification
Identification no.
Type
- Type C: With fastening set
Housing
Aluminum, plain finish AB
Screws
Steel, zinc plated, blue passivated SZ
Cover caps
Plastic (Polyamide PA)
Black S
Information

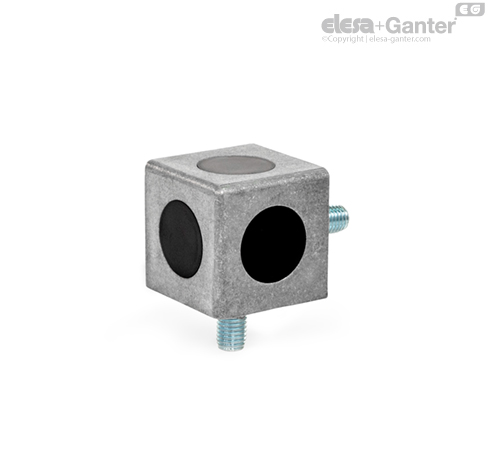

Cube connectors GN 33b fasten two or three aluminum profiles together on their end faces, at right angles and with anti-twist protection. Machining of the profile is not necessary.
The self-forming thread of the screws should be lubricated to facilitate assembly. The end faces of the aluminum profiles are covered by the cube connectors, which ensures a visually appealing appearance.
If panels are used in the slot, they must be given a suitable corner chamfer.
