Specification
- Type A: Ratchet insert with through hole
- Type B: Ratchet insert with blind hole

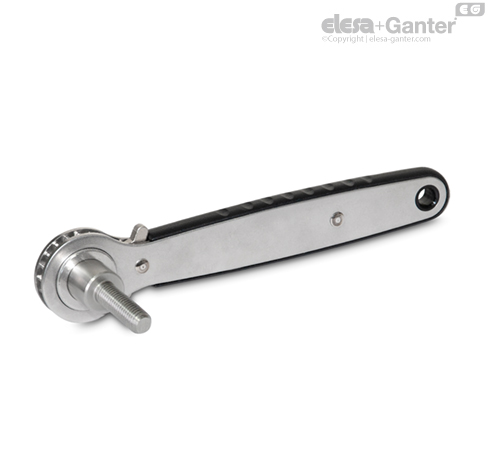

- Type C: Ratchet insert with threaded stud
Stainless steel sheet AISI 304
- Stainless steel AISI 316LHC for type A
- Stainless steel AISI 303 for type B / C
Stainless steel AISI 316LHC
Sintered
Information
Ratchet spanners GN 318 are robust, easy to handle and ergonomically shaped to sit easily in the hand.
Ratchet spanners are normally used wherever the same ratchet insert is always required or where it makes sense to leave the ratchet spanner at the place of use or attach it to equipment or machinery as a „stationary“ tool. The ratchet inserts are available in different versions depending on their type and are permanently fixed in the housing. Due to the high-quality materials, the ratchet spanner is suitable for use in aggressive environments.
