Specification
Types
- Type A: without rest position, without lock nut
- Type AK: without rest position, with lock nut
- Type C: with rest position, without lock nut
- Type CK: with rest position, with lock nut
Guide (Threaded socket)
Version in Steel ST
blackened
Guide (Threaded socket)
Version in Stainless Steel AISI 303 NI
Pin
Stainless Steel AISI 303
chemically nickel plated
Spring / Lifting ring
Stainless Steel AISI 301
Information

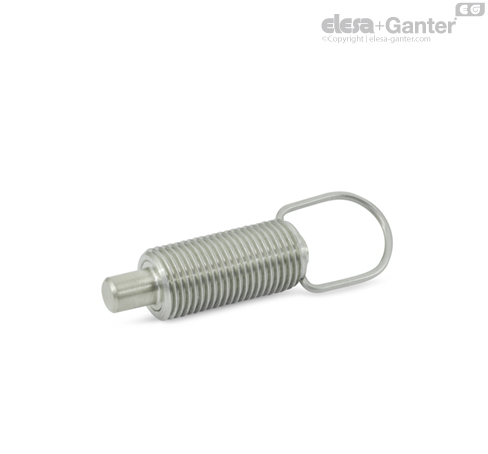

Owing to its shape, the lifting ring of the indexing plungers GN 413 can be used both as a screw-in assist during assembly or as indexing lock (Type C / Type CK).
Indexing plungers with rest position are used when the indexing pin is temporarily not allowed to protrude. After the pin is pulled in, turn the pull ring by 90°. The ring is held in position by an indexing notch.
