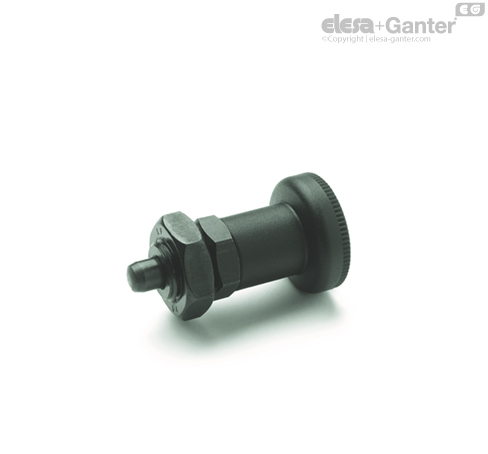

GN 607.1 Indexing plungers Indexing plungers, Steel

Indexing plungers GN 607.1 with rest position are used for such applications where the plunger has to stay in its rectracted position. To achieve this, the knob is roated by 90° degrees after being rectracted. A notch keept the plunger in this position.

Indexing plungers GN 607.1 are distinguished for their small dimensions. The extremely low luck nuts GN 909 / GN 909.5 enlarge the mounting options. The locking tab is an integral part of the knob thus giving reliable operations at all times.

• Range of indexing plungers -

• ISO-Fundamental Tolerances -

• Stainless Steel characteristics

• Plastic characteristics

• Load rating information
