Specification
Types
- Type A: with lifting ring, without lock nut
- Type AK: with lifting ring, with lock nut
- Type B: without rest position (Knob), without lock nut
- Type BK: without rest position (Knob), with lock nut
- Type C: with rest position (Knob), without lock nut
- Type CK: with rest position (Knob), with lock nut
- Type D: with wire loop, without lock nut
- Type DK: with wire loop, with lock nut
- Version in Steel zinc plated, blue passivated ST
- Version in Stainless Steel AISI 303 NI
Pin
Stainless Steel AISI 303
Spring
Stainless Steel AISI 301
Lifting ring / Wire loop
Stainless Steel AISI 301
Knob Plastic (Polyamide PA)
Information

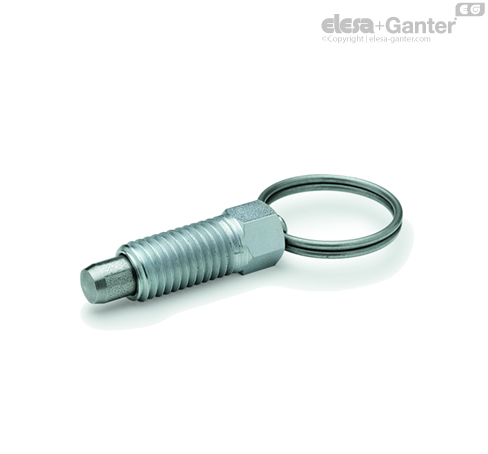

GN 717 Indexing plungers are characterized by small dimensions. These indexing plungers are universally applicable due to their prevention of misalignments and positioning errors of the mating indexing bores.
The type C / CK with rest position are used for such applications where the plunger has to stay in its retracted position.
During assembly, the max. tightening torques shown in the table should not be exceeded when securing the lock nut.
