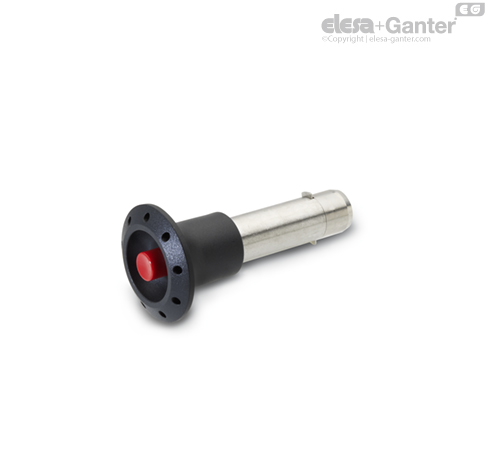

GN 114.3

Locking Pins

Locking pins with axial lock GN 114.3 are used for quick fixing, connecting and locking of various jig and fixture systems. A typical application is location pins which have to be often removed and re-placed again.

The rectangular pawls made of Stainless Steel sheet metal keep the locking pin in an axial position in the bore. It can be retracted by pressing the button, once released it returns the pressure spring into its locking position.

The technical appendix contains the load capacities for the double-sided shearing resistance (breaking strength).

• Ball Chains GN 111 /GN 111.5

• Retaining Cables GN 111.2

• Spiral Retaining Cables GN 111.4

• List of Lock Pin Types
• Load Capacity
• ISO-Fundamental Tolerances
• Stainless Steel characteristics
