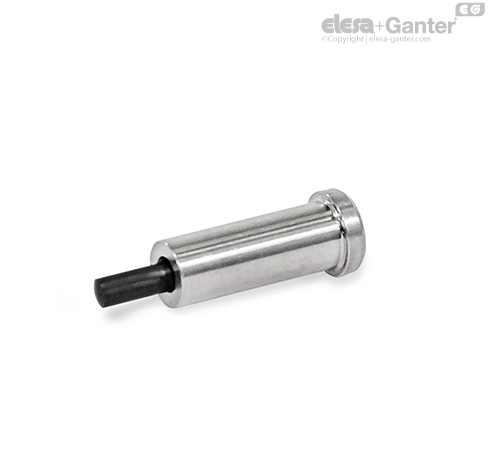

GN 614.6-KN
GN 614.6
Spring Plungers
78711-R,20
78710-R,10
78712-R,50
orGN 300-30-B5-SW;60
GN 612-5-M12x1,5-A;40
DIN 172-B10,5-20-A;50
ISO 8675-M8x1-04-BT;10
78711-R,20
78710-R,10
78712-R,50
orGN 300-30-B5-SW;60
GN 612-5-M12x1,5-A;40
DIN 172-B10,5-20-A;50
ISO 8675-M8x1-04-BT;10
Type K
Housing
Steel, blackened
Bolt
Steel, blackened
Case hardened
Type KN
Housing
Stainless steel AISI 303
Bolt
Stainless steel AISI 303
Nitrided
Pressure spring
Stainless steel AISI 631
Spring plungers GN 614.6 are primarily used in toolmaking as spring-loaded stops as well as for pressure and hold-off functions.
Tolerance d1 H7 is recommended for the mounting hole.
