Specification
Types
- Type S: Steel, with standard spring load
- Type SS: Steel, with high spring load
- Type SN: Stainless Steel, with standard spring load
Type S / SS

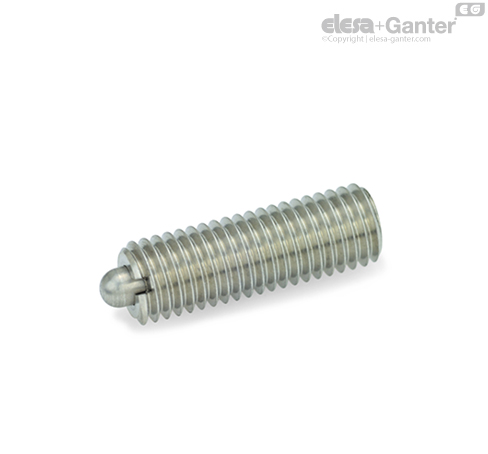

Type SN
- Housing Stainless Steel AISI 303
- Bolt Stainless Steel AISI 303
Pressure spring
Stainless Steel AISI 303
Seal
Rubber NBR (Perbunan®)
Identification of type SS:
Housing with 2 longitudinal markings
Information
Spring plungers GN 616.1 are used for locking as well as for pressure and hold-off functions. Entry of liquids and dirt is prevented by the seal.
The slit on the plunger side is used for screwing into pocket holes. For this, a special screwdriver is available as GN 611.5 (see table).
