Specification
Types
- Type K: Steel, standard spring load
- Type KS: Steel, high spring load
- Type KN: Stainless Steel, standard spring load
- Type KSN: Stainless Steel, high spring load

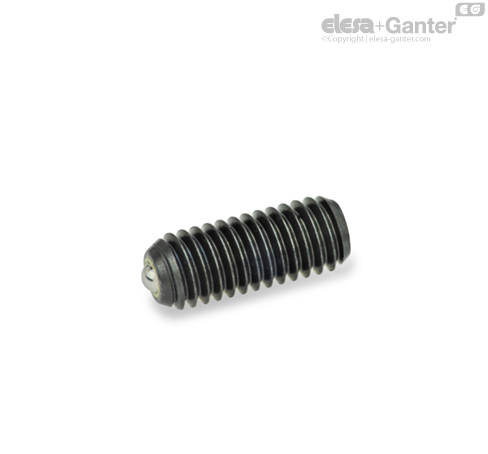

Type K / KS
Type KN / KSN
- Housing Stainless Steel AISI 303
- Ball Stainless Steel AISI 420C, hardened
Spring
Stainless Steel AISI 631
- temperature resistant up to 90 °C
Identification of type KS / KSN:
Housing with 2 longitudinal markings
Information
GN 615.9 spring plungers are used for locking as well as for pressure and hold-off functions.
The ball is mounted in a plastic shell so as to be freely movable, which enables rolling and therefor generally optimizes the locking characteristics. Above all, this reduces wear on the counter piece.
A further characteristic of these plungers is that the plastic bearing acts as an electrical insulator.
