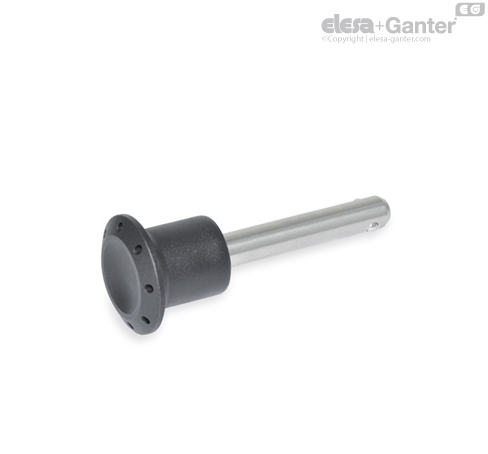

GN 124.2

Stainless Steel-Locking pins

GN 124.2 Stainless Steel-Locking pins are used for quick fixing, connecting and locking of various jig and fixture systems.

The locking balls are held in position by a pressure spring and are therefore not rigidly locked. The bolts can be quickly and easily inserted and removed from the locating hole.

The rated shear stresses of the bolt cross-section are theoretical guide values only and do not constitute any warranty. They constitute no general warranty of quality and condition. The user must determine from case to case whether a product is suitable for the intended use.

This standard replaces the previous Stainless Steel-Locking pins GN 124.

• Stainless Steel-Ball chains GN 111.5

• Retaining cables GN 111.2

• List of Lock Pin Types
• Load Capacity
• Plastic Characteristics
• Stainless Steel Characteristics
