GN 614.3-NIS
GN 614.3

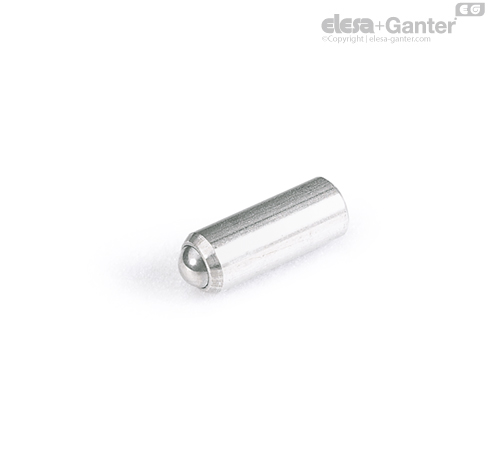

Stainless Steel Spring Plungers
78711-R,20
78710-R,10
78712-R,50
orGN 300-30-B5-SW;60
GN 612-5-M12x1,5-A;40
DIN 172-B10,5-20-A;50
ISO 8675-M8x1-04-BT;10
78711-R,20
78710-R,10
78712-R,50
orGN 300-30-B5-SW;60
GN 612-5-M12x1,5-A;40
DIN 172-B10,5-20-A;50
ISO 8675-M8x1-04-BT;10
Housing
Stainless steel AISI 303
Ball
Stainless steel AISI 420C
Hardened
Pressure spring
Stainless steel AISI 631
Identification of type NIS:
Housing with 2 longitudinal markings
Stainless steel spring plungers GN 614.3 are used for locking as well as for pressure and hold-off functions.
For the mounting hole, tolerance d1 F8 is recommended for joined fitting and d1 H9 for press fitting.
