Specification
Identification no.
No. 2: With 4 stainless steel socket cap screws DIN 912
Aluminum
Powder coated
Black, RAL 9005, textured finish SW
Socket cap screws DIN 912
Stainless steel AISI 304
Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring
Information

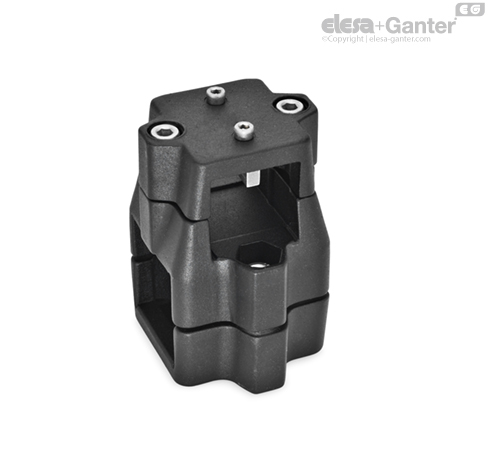

Two-way linear actuator connectors GN 135.1 are based on two-way connector clamps. The additionally provided mounting holes are used to connect to the drive key of a linear actuator.
The mounting holes d3 for the drive key are always located in the bore d1 or the square s1 in the one-axis system. Centering bushings in the through-hole eliminate the axial clearance. The width of the s1 square is dimensionally aligned with the play of the square linear actuators.
For quick clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.
