Specification
Version in Steel
Types
- Type A: Full ball
- Type B: Flat ball
- Type V: Flat ball, with swivel limiting stop
- Type VR: Flat ball, with swivel limiting stop, corrugated
Steel
Version in Stainless Steel
Types
- Type AN: Full ball
- Type BN: Flat ball
- Type VN: Flat ball, with swivel limiting stop
- Type VRN: Flat ball, with swivel limiting stop, corrugated
Screw
Ball
Stainless steel AISI 440C
Hardened
Information

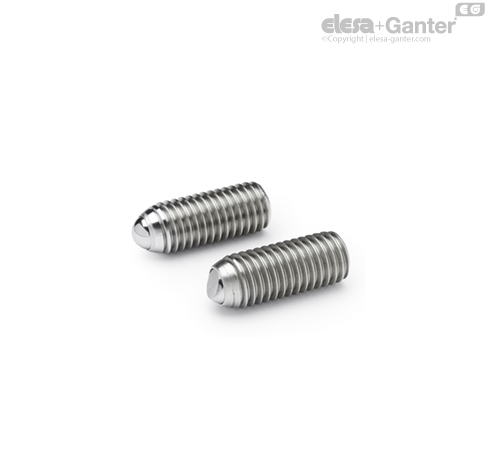

Ball point screws GN 605 with full ball (types A / AN) are used in applications where a ball point contact is required.
The flat faced moving ball (types B / BN) allows a clamping or supporting of non parallel surfaces.
The ball of types V / VR / VN / VRN can be swivelled to a maximum of 9° to ensure that clamping is always maintained on the flat section of the ball.
The fine thread increases the self-locking action and allows for finer adjustment.
