GN 970
GN 970
Installation brackets
78711-R,20
78710-R,10
78712-R,50
orGN 300-30-B5-SW;60
GN 612-5-M12x1,5-A;40
DIN 172-B10,5-20-A;50
ISO 8675-M8x1-04-BT;10
78711-R,20
78710-R,10
78712-R,50
orGN 300-30-B5-SW;60
GN 612-5-M12x1,5-A;40
DIN 172-B10,5-20-A;50
ISO 8675-M8x1-04-BT;10
Structural Steel STB
drawn, with sharp edges
blackened
Aluminium ALM
pressed
matt, ground

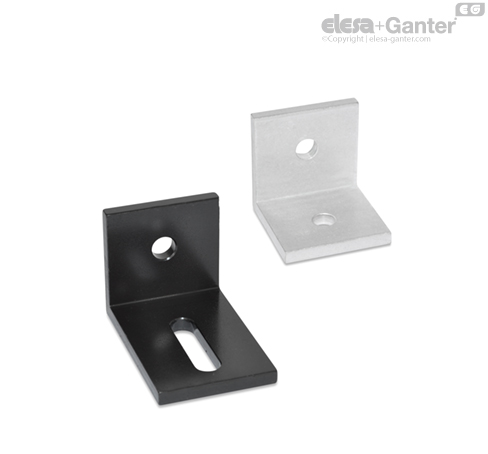

GN 970 installation brackets are used universally for right-angle connecting and fastening of, e.g. base plates or covers.
Type A allows for the use of drilling templates specific to the application as well as fastening by welding.
Type B installation brackets have 2 or 4 holes depending on the length l1.
Type C installation brackets have one or two combinations of a hole and an elongated hole depending on the length l1.
