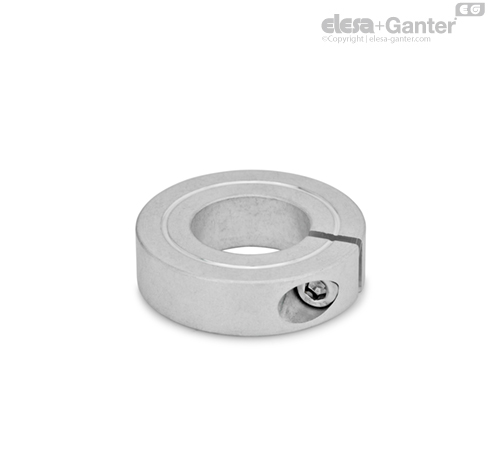

GN 706.2-AL Semi-Split Shaft Collars Aluminum

Semi-split shaft collars GN 706.2 can safely and simply be assembled by reducing the slot height with high clamping force and thus they act, for instance, like an end stop. The surface of the shaft or the axle is not damaged.

The thread d₃ for sizes d₁ = 16 to 36 is designed as a through hole; for sizes d₁ = 42 and larger, it is designed as blind hole.
