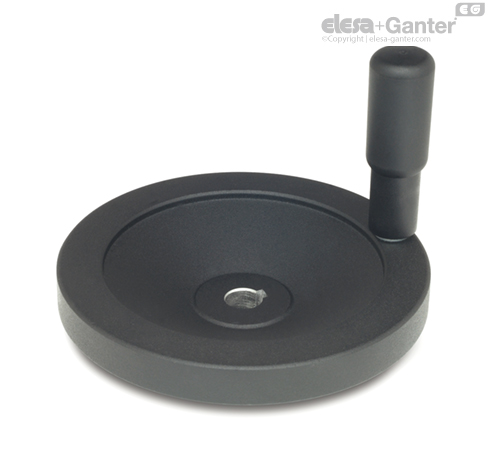

GN 323-K Disk Handwheels With keyway DIN 6885-1 P9

Bore codes

• Version B: Without keyway
• Version K: With keyway DIN 6885-1 P9

Types

• Type A: Without handle
• Type R: With revolving handle

Wheel body

Aluminum

• Hub machined

• Rim

• Turned on all sides

• Radial and axial runout < 0,4

• Completely powder coated

• Black, textured finish

Revolving handle GN 798

Plastic, Polyamide (PA)

• Black, matte

• Spindle steel

• Zinc plated, blue passivated
