GN 669-A Tubular Handles Mounting from the back (threaded blind bore)

Tubular handles GN 669 offer the the advantage of high stability due to the connection of handle tube / handle leg.

The screws of type B (mounting from operator‘s side) are shrouded.

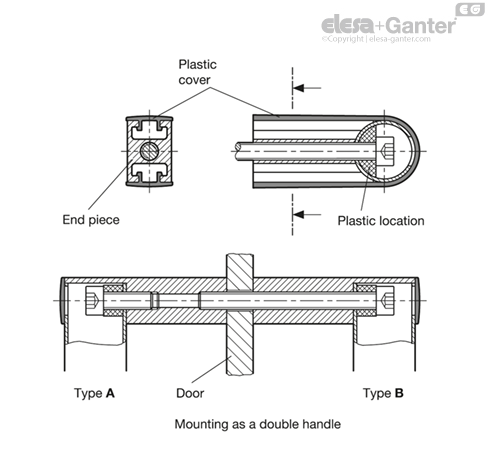

When mounting from the operator‘s side (Type B) the plastic cover is supplied loose. Once the handle has been mounted this cover is pushed over the end of the handle tube and the end piece until it snaps into the end of the groove at the tube end.

Both mounting methods (Type A and B) allow the mounting of a pair of handles in opposite position. This method could be used on doors (double handle). Depending on the door thickness longer socket cap screws ISO 4762 might be required.
