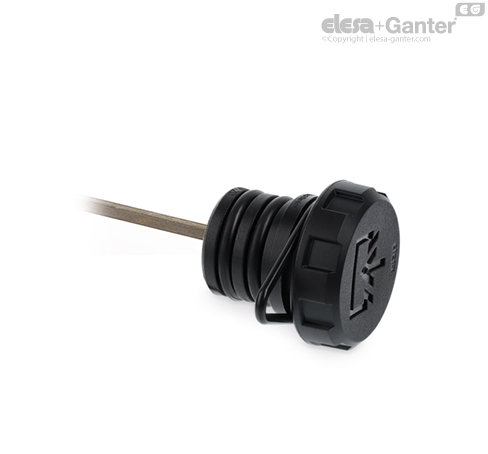

TP-CF+a-RC Push-fit caps With side breather hole

Material

Polyamide-based (PA) technopolymer, black colour RAL 9005, matte finish.

Elastic fork

Acetal-based technopolymer (POM), black colour.

Packing rings

Two NBR synthetic rubber O-rings.

Flat dipstick

Flat section phosphatised steel.

On request and for sufficient quantities dipstick can be supplied in different lengths and/or complete with MAX-MIN level lines.

Standard executions

• TP-C+a-RC: without side hole.

• TP-CF+a-RC: with side breather hole.

Maximum continuous working temperature

60°C.

Graphic symbol "fill"

According to DIN regulations.

Mounting

Push-fit avoids the need to screw/unscrew.
