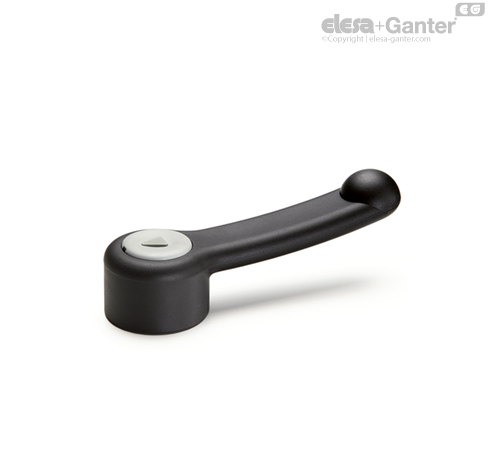

ELC-SST-FC3 Control levers AISI 303 stainless steel boss, cap in grey colour

Ergonomy

Rotations are performed smoothly and powerfully thanks to the heavy-duty arm of the lever, while the enlarged and sunken semispherical end offers an effective grip.

Manoeuvre angle limitation

A limited manoeuvre angle is possible by fitting stop pins in the rear guide slot.



Accessories on request

• GN 184: axial retaining washer in black-oxide steel.
• MS.: ball and spring for clicking operation to be fitted into the two holes d3 drilled at 180° (see ball and spring).
• ECB.T: glass-fibre reinforced polyamide based (PA) technopolymer boss cap, in Elecolors colour, matte finish, press-fit assembly (see table).
• ECBF.T: glass-fibre reinforced polyamide based (PA) technopolymer boss cap, RAL 7035 light grey colour, with arrow indicator, press-fit assembly (see table).

Special executions on request

Levers with cross holes according to GN 110.
