Main specifications
Threaded body
Glass-fibre reinforced polyamide based (PA) SUPER-technopolymer.
Plunger
Black-oxide hardened steel or AISI 303 stainless steel.
Suggested tolerance for matching hole = H7.
Knob
Glass-fibre reinforced polyamide based (PA) technopolymer, grey-black colour, matte finish.
Spring
AISI 302 stainless steel.
Locking nut
- NTT: special glass-fibre reinforced polyamide based (PA) SUPER-technopolymer.
Available also as accessory sold separately (see table).
Standard executions
- PMT.110-A: black-oxide steel plunger, without locking nut.
- PMT.110-AK: black-oxide steel plunger, with locking nut (supplied not assembled).

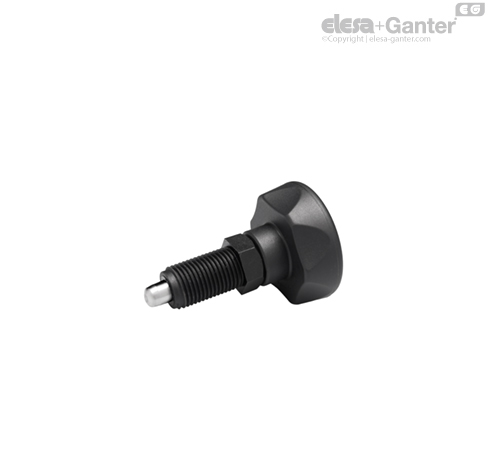

- PMT.110-SST-A: AISI 303 stainless steel plunger, without locking nut, not magnetic.
- PMT.110-SST-AK: AISI 303 stainless steel plunger, with locking nut (supplied not assembled), not magnetic.
Assembly instructions
Assembly instructions
Make sure that no machining residues are left on the threaded hole for the tightening of PMT.110 indexing plunger (see fig. 1). Do not make any chamfering in the hole (see fig. 2).
SUPER-technopolymer product based on ELESA technology, dimensions of the threaded body and plunger according to GN 612 standards as agreed with Otto Ganter GmbH Co. KG.
ELK knob type: ELESA original design.
