Specification
- Type D: Without thrust pad
- Type E: With thrust pad DIN 6311 (only for steel)
- Stainless steel AISI 304 NI
Plastic, Polyethylene (PE)
Gray
Steel
Information

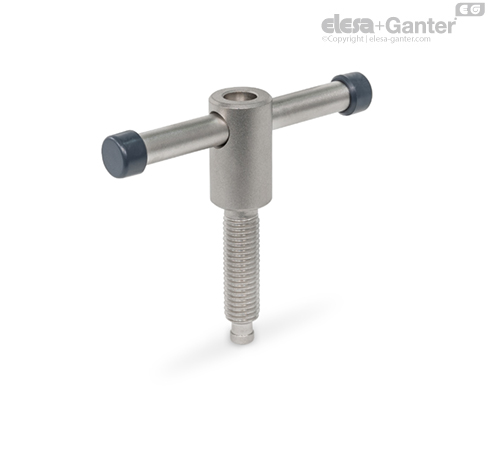

Tommy screws DIN 6306 are used for clamping and pressing. Combining them with thrust pads or base plates increases the contact surface and allows for angle compensation.
The sliding bar is protected against loss by the end caps and held in any position by the pressure spring.
Installation of the thrust pad (type E) is made easier if the pivot is positioned at an angle against the closed side of the snap ring and then pressed in.
