Main specifications
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.
Centre cap
Technopolymer, black colour.
Standard executions
Glass-fibre reinforced technopolymer clamping element with toothing and retaining pin, black colour. AISI 302 stainless steel return spring.

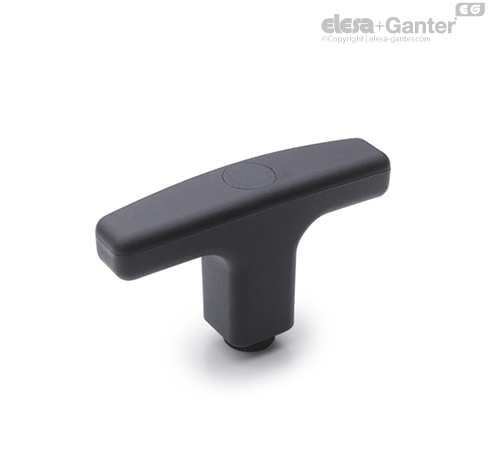

- L.652-X-B: brass boss, threaded blind hole.
- L.652-X-p: zinc-plated steel threaded stud, chamfered flat end UNI 947: ISO 4753 (see Technical data).
General information
Features and applications
Particularly suitable when clamping operations are limited owing to lack of space and the hand of the operator cannot make a complete rotation.
Instructions of use
For clamping, lift the handle to disengage the clamping device toothing and bring it back to start position. By releasing the handle, the return spring automatically engages the toothing.
Special executions on request
Special executions on request
Different lengths of threaded stud.
