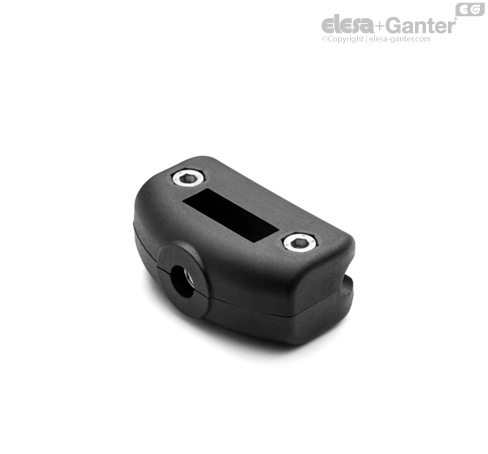

MPG-C Guide rail clamps For round guides

Features and applications

MPG-T execution can be used with the side guides having an AISI 304 stainless steel bracket of thickness 1.5 or 2 mm.



Assembly instructions

• Mount the guide rail clamp on the support bar (dimension 25x8 mm), the assembly consists in inserting the bar into the specific clamp slot (Fig.1).
• Insert the guide into the clamp housing and then clamp the screws (Fig.2).
• Set the height of the clamp and clamp by means of a M8 screw, not supplied (Fig.3).
