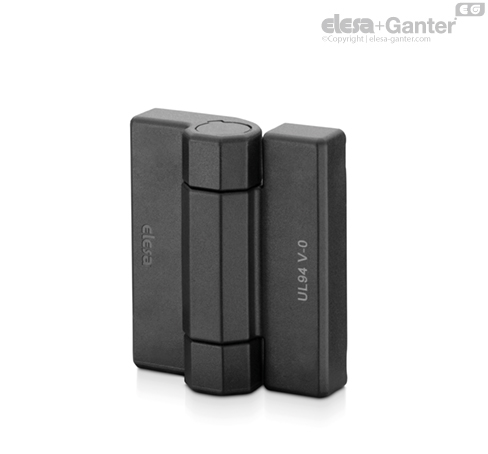

CFM-PCN-AE-V0-B Hinges Bushings with threaded blind hole

Material

Glass-fibre reinforced polyamide based (PA) technopolymer certified self-extinguishing UL-94 V0, black colour, matte finish.

Rotating pin

Self-lubricating glass-fibre reinforced polyamide based (PA) technopolymer, black colour.

Standard executions

• CFM-PCN-AE-V0-SH: pass-through holes for countersunk head screws.

• CFM-PCN-AE-V0-B: brass bushings with threaded blind hole.

Rotation angle (approximate value)

Max 245° (-65° and +180° being 0° the condition where the two interconnected surfaces are on the same plane), see Fig.1.

Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical performance.

To choose the convenient type and the right number of hinges for your application, see the Guidelines.
