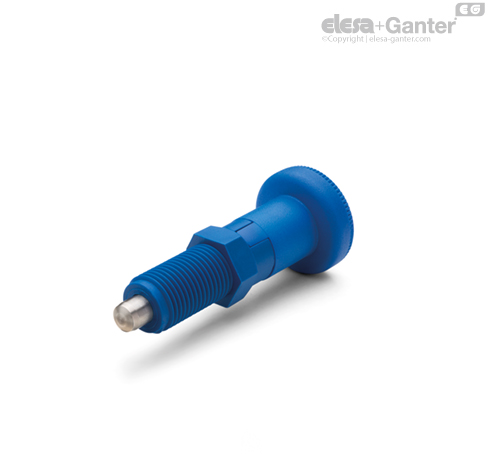

PMT.101-SST-A-VD Indexing plungers Without locking nut

Features and applications

• The RAL 5005 blue colour is easily visible in case of accidental food contamination.

• Resistant to several cleaning cycles with solvents and other chemical agents, for this reason they are suitable for applications as in the pharmaceutical or food industry.

• Anticorrosive material: suitable even in the presence of liquid or humidity.

• Lightness and high mechanical resistance of the product.

• The SUPER-technopolymer threaded body of the plunger offers a low friction factor to the plunger stroke; no lubricating maintenance is FDA required.

• The stop toothing (for the rest position) made out of SUPER-technopolymer: no risk of seizure or wear.

Assembly instructions

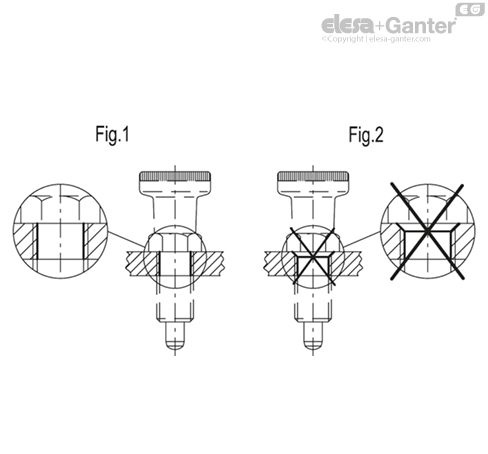

Make sure that no machining residues are left on the threaded hole for the assembly indexing plunger (see fig. 1). Do not make any chamfering in the hole (see fig. 2).

SUPER-technopolymer product based on ELESA technology, dimensions according to GN 617 standards as agreed with Otto Ganter GmbH Co. KG.



Another standard execution

PMT.100-SST-VD: indexing plungers without rest position.

Accessories on request

NTT-VD: Special glass-fibre reinforced polyamide based (PA) SUPER-technopolymer, blue colour RAL 5005.
