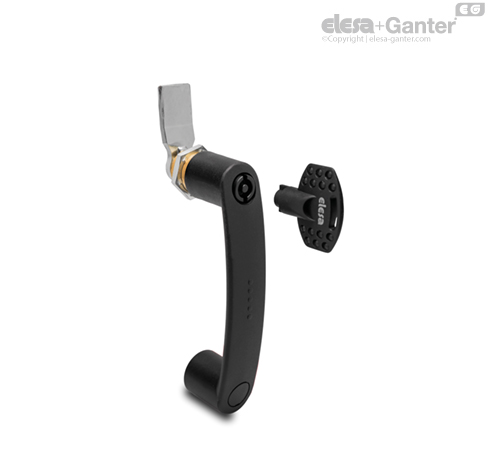

EBP-CH-A Handles with latch Two-wing groove

Technical data

Tensile stress and impact strength: the values F1, F2, L1 and L2 indicated in the table were obtained during breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.

The value F3 shown in the table represents the load under traction in the closed condition of the handle.

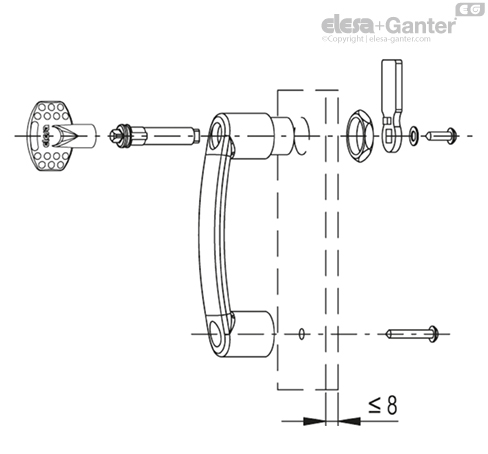

Assembly instructions

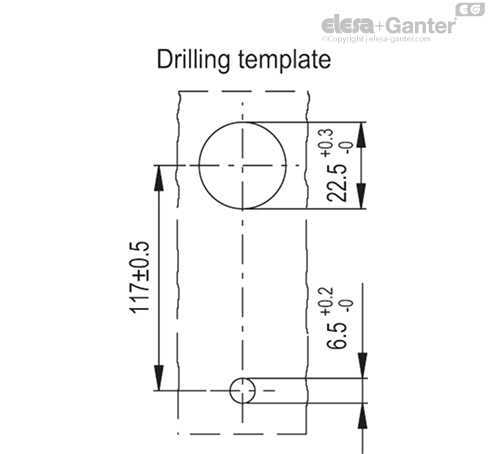

1. Drill the holes in the door following the supplied template.
2. Fit the handle.
3. Screw the nut on the stator and the screw in the tapped boss to secure the handle to the door.
4. Fit the rotor into the handle seat.
5. Fix the lever to the end of the rotor by means of a washer and a threaded screw.
