Specification
Types

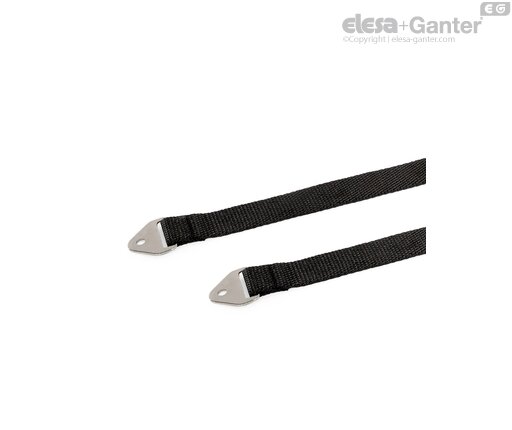

- Type AA: 2 flat screw-on plates

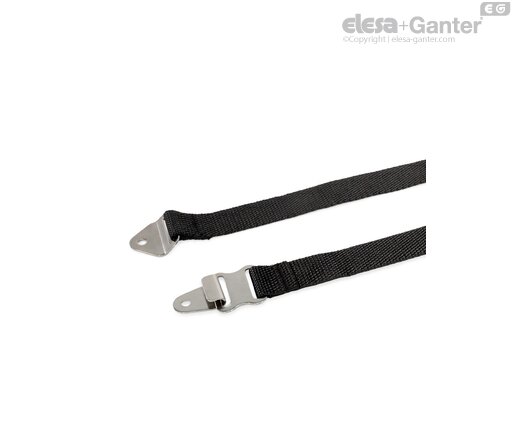

- Type AD: Flat screw-on plate, suspension plate and screw-on hook
- Type BB: 2 45° screw-on plates
- Type BD: 45° screw-on plate, suspension plate and screw-on hook
- Type BF: 45° screw-on plate, 45° screw-on plate for locking
Fasteners
Stainless steel AISI 304 NI
Strap
Plastic, polyester
Information

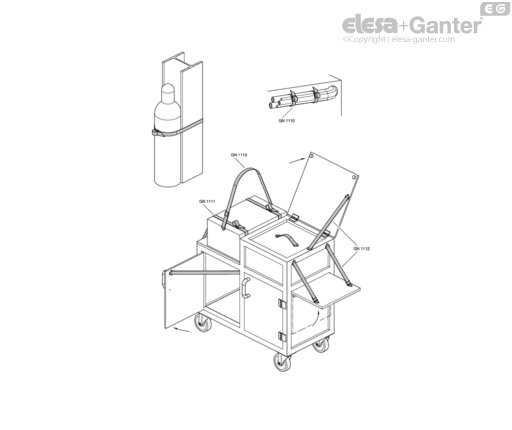

Retaining straps GN 1112 have a fixed length. When used as a holding strap, they limit the opening angle of doors and covers or serve as bracing or gripping elements. Thanks to the fasteners permanently sewn onto the ends, the retaining straps can be securely screwed or riveted in place.

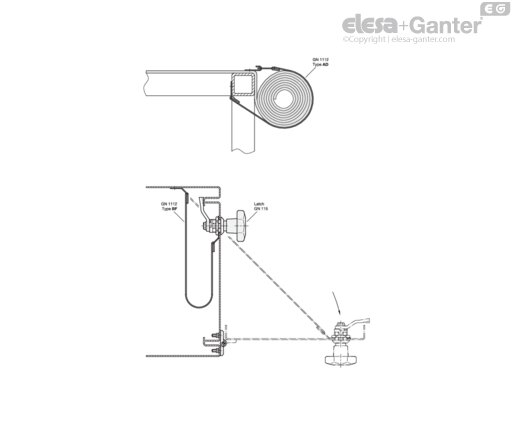

Types AD and BD can be quickly and easily attached or detached thanks to the additional hook latch. Type BF can be compactly secured to the body of a latch by means of an external thread (e.g. GN 115) so that they require no further fastening.
Retaining straps GN 1112 may not be used for lifting loads or for lashing.
